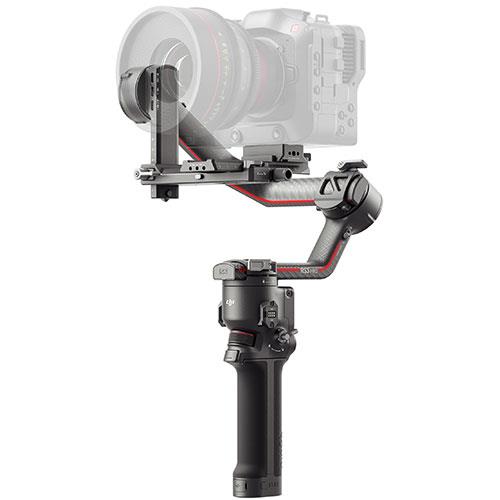

DJI RS 3 Pro Handheld Gimbal

The DJI RS 3 Pro is a lightweight (just 1.5kg), advanced Gimbal stabiliser for videographers and provides co-ordinated shooting solutions for professional crews. The RS 3 Pro uses extended carbon fibre axis arms to allow more balancing space for professional cameras and has a maxiumum load of 4.5kg. Box contents are listed at the bottom of the page.

Sleek Carbon Fibre construction
The RS 3 Pro arms are constructed from layered sheets of uncut carbon fiber, just like the Ronin 2. This makes it lighter and stronger than the jointed carbon fiber material used on RS 2, increasing stiffness and lowering weight to cope with even more demanding shooting environments.

Handle big payloads
The optimized structural design of RS 3 Pro ensures that its weight remains the same as RS 2 at just 1.5 kg (includes gimbal, battery grip, and dual-layered quick-release plates), while its load capacity is a robust 4.5 kg, delivering powerful support in a lightweight body.
To make the balancing process easier, a fine-tuning knob has been added for the tilt axis to move the camera forward or backward more precisely, even down to the millimetre. With Teflon®-coated components, RS 3 Pro can be balanced with less friction and lower resistance, even when mounting heavy cameras.

Automated axis locks
RS 3 Pro allows you to get started fast to never miss a shot. Simply press and hold the power button and the three axes unlock and expand automatically, allowing you to start shooting within seconds. Press the power button once, and the axes automatically lock and enter sleep mode, making company move significantly more efficient. Press and hold the power button and it will fold and lock automatically.

Wireless shutter control
Equipped with Dual-Mode Bluetooth technology, RS 3 Pro is able to achieve efficient and reliable wireless shutter control. After the initial Bluetooth pairing, you can control video and photo shooting by simply pressing the record button on the stabilizer. A previously paired camera will automatically reconnect, saving you time with every ensuing use.

Instant mode switching
By simply sliding the new Gimbal Mode Switch, you can alternate between Pan follow, Pan and Tilt follow, and FPV modes. The FPV mode selection is also customizable to 3D Roll 360, Portrait, or Custom, allowing you to adjust your equipment and get started fast.

1.8-inch OLED full colour touchscreen
A large, built-in 1.8-inch OLED full-colour touchscreen increases screen size by 28% compared to RS 2, making it incredibly convenient for setting parameters, checking shooting status, and framing your tracked subjects. [3] And with the redesigned user interface, every setting is more intuitive and precise. The OLED screen also offers higher brightness than the LCD screen of RS 2 for better outdoor viewing with lower power consumption.

Pro-grade stabilization
Empowered by the third generation of RS stabilization algorithms, RS 3 Pro provides significantly enhanced stability in any scenario. Laboratory sampling data shows RS 3 Pro provides a 20% increase in stability over RS 2, effortlessly managing low-angle shots, running scenarios, or switching between high and low positions.

SuperSmooth mode
When SuperSmooth mode is enabled, RS 3 Pro increases motor torque to further enhance stabilization, delivering stable footage even in fast-moving scenarios or when using 100mm-equivalent focal length lenses.

Pro-grade focusing
To make focusing easier, Ronin 4D’s LiDAR focusing technology is applied to RS 3 Pro. The new LiDAR Range Finder (RS) can project 43,200 ranging points within a 14-meter distance. It also features a built-in camera with an equivalent focal length of 30 mm and a wide FOV of 70°, catering to the focusing needs of most scenarios.
Compared with conventional focusing technology, the LiDAR focusing system does not need to rely on the surface texture of the subject. This is especially useful in low-light environments or complicated scenarios with multiple subjects and results in exceptionally stable focus.
It supports both Wide Mode and Spot Mode. In Wide Mode, the range finder automatically detects the subject and follows focus. In Spot Mode, users can manually frame or tap the subject to focus.

ActiveTrack Pro
Tracking on the Ronin series has never been more accurate or responsive. The next-generation ActiveTrack Pro can directly read images from the camera built into the LiDAR Range Finder, with no need for the Ronin Image Transmitter (previously known as the Ronin RavenEye Image Transmitter). The LiDAR Range Finder also carries a self-developed chip identical to the one used by Ronin 4D, which boosts the computing power of ActiveTrack Pro by more than 60 times compared to ActiveTrack 3.0 on the Ronin Image Transmitter.

When using ActiveTrack Pro, you can directly monitor or frame the subject on the RS 3 Pro’s OLED touchscreen. The live feed latency is reduced to just 40 ms, 60% lower than that of the Ronin Image Transmitter, allowing for swift tracking, even when the subject is moving fast. With a neural network accelerator, it can identify and track targets, even when they are numerous and at a distance.

Pro grade video transmission
RS 3 Pro can pair with the all-new DJI Transmission to offer a customized shooting solution. The DJI Video Transmitter can be powered directly by RS 3 Pro and mounts conveniently on the bottom via the cold shoe without the need for an additional battery, reducing the burden for handheld setup.

Long range wireless transmission
O3 Pro Video Transmission supports a 6km/20,000ft video and audio transmission range with ultra-low latency, as well as automatic frequency hopping between 2.4 GHz, 5.8 GHz, and DFS bands, providing crews with an impressively stable and interference-free remote monitoring experience.

Co-ordinated shooting
The DJI High-Bright Remote Monitor supports 1080p/60fps live feeds and one transmitter with multiple receivers. In Control mode, two receivers can be used at the same time to collaboratively control RS 3 Pro’s gimbal, focus, and camera parameters for an integrated reception, monitoring, and control experience.

Wireless Gimbal and focus control
The High-Bright Remote Monitor can be used with Ronin 4D Hand Grips, DJI Master Wheels, or DJI Force Pro to control the gimbal and focus precisely. It is also equipped with a built-in gyroscopic sensor that can turn the remote monitor into a standalone motion controller for RS 3 Pro without additional accessories to achieve more complex camera movements from a moving vehicle or with a jib.

Seamless wireless camera control
When RS 3 Pro is mounted to carriers like a jib, cable cam, or a vehicle suction cup mount, Mirror Control mode unlocks seamless wireless control from anywhere on set. This mode allows direct control of the core menu operations for Sony mirrorless cameras via a remote monitor, all without having to detach your camera.

Extensive Expandability
With dual RSA/NATO ports and a battery port, RS 3 Pro can be connected to various accessories such as the Twist Grip Dual Handle, Tethered Control Handle, and the new DJI Briefcase Handle to flexibly meet a variety of shooting requirements.

In the box:
- DJI RS 3 Pro Gimbal
- BG30 Grip
- Carrying case
- Briefcase handle
- USB-C charging cable
- Lens-Fastening Support (Extended)
- Extended grip triod (metal)
- Quick Release Plate (Arca-Swiss/Manfrotto)
- 1x Multi-Camera Control Cable (USB-C, 30 cm)
- Screw kit

MFR ref: CP.RN.00000219.01
